V4549902-0100 Jet Valve Membrane
Product Description
Standard: Optipow Pulse Jet Valve
Operating Temperature : Low Temperature Resistant Design
Application: Diaphragm Plunger Pulse Jet Valve, Fabric Bag Colletor Valve
Advantage: 30 Years Experience Factory, Strict Quality Control System, Supper Quality, Attractive Price
Production Capacity: 1000000PCS/Month
Longer Service Life: More than Twice Service Life than that in the Same Industry
Interchange: Pulse Jet Valve, Optipow Fabric Filter Valve
Assurance: One Year Free Quality Assurance Service
Service: 7*24 Hours Expert Consultation Online
Product Details

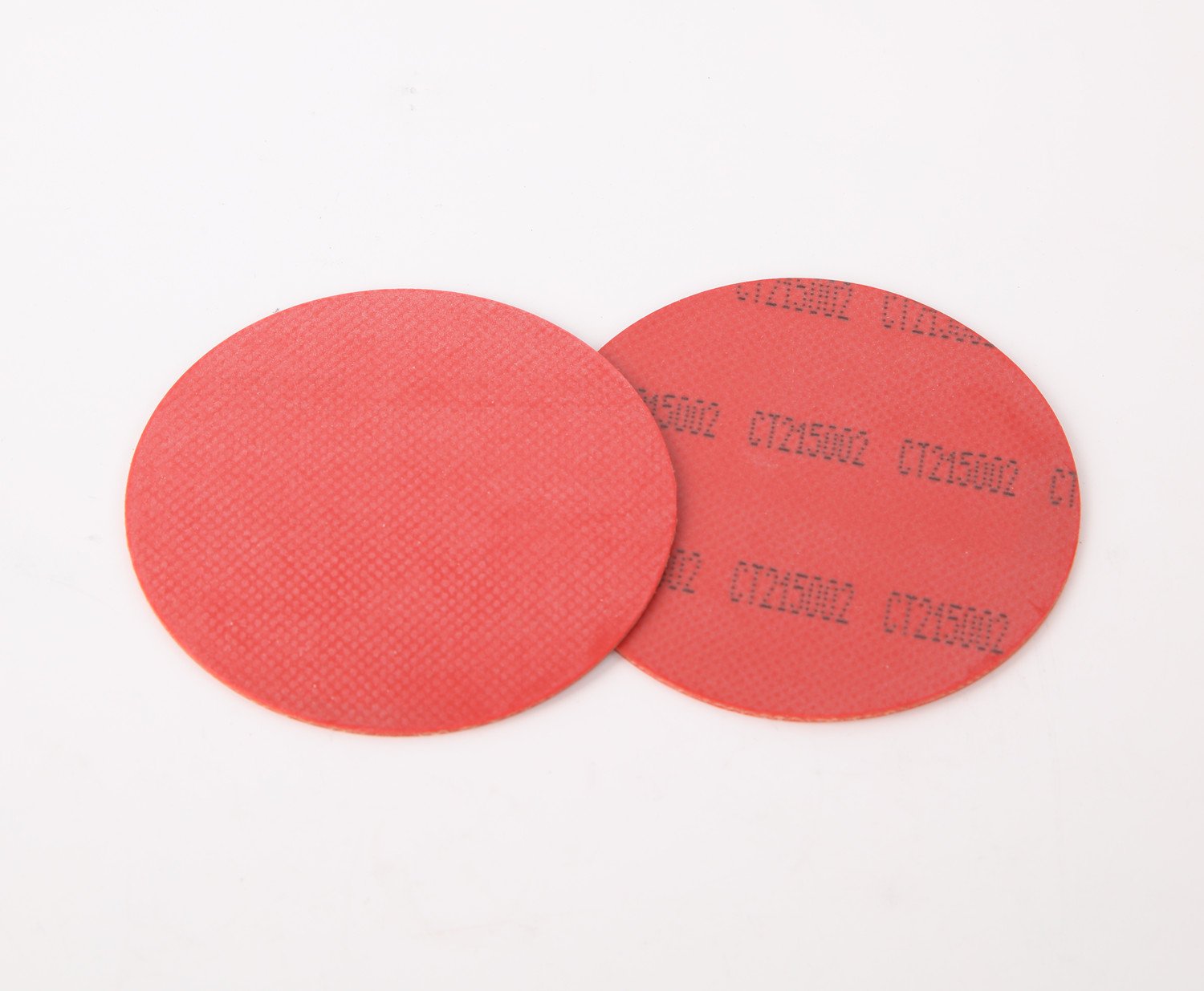

V4549902-0100 Jet Valve Membrane
1. Pilot membrane is made of special Nitril Rubber.
2. The diaphragm is universal, suitable for OPTIPOW105 and OPTIPOW135.
3. Built-in reinforced mesh.
4. Diaphragm V4549902, the compact pulse valve for the Optipulse fabric filters of different types
V4549902 / V4549902-0100 type diaphragm membrane for OPTIPOW105 & OPTIPOW135 piston pulse Valve.
Ordering Code: V4549902-0100
Material: Nitrile(NBR)
V4549902-0100 type diaphragm kits can be used for OPTIPOW105 & OPTIPOW135 3-inch and 4-inch piston pulse valves.
OPTIPOW® 105, the compact pulse valve for the Optipulse fabric filters of different types:
is a result of many years of experience within the fabric filter technology area,
experiences from the former used a membrane-type pulse valve and extensive testing
in the SEATC laboratories.
Normal operating pressure： < 6 bar
◆ MEMBRANE PARAMETERS
| PARTS NO. | FIT | DIAMETER | THICKNESS | MAIN MATERIAL | MEDIUM | ENVIRONMENTAL TEMP | WEIGHT |
| V4549902-0100 | Optipow105/135 | 72mm | 1.15mm | Buna-N rubber | Air, Pmax 7Bar | -50 ºС to + 110 ºС | 6g/pc |
| Burkert | |||||||
| Danfoss |
◆ Plunger Pulse Solenoid Valve Optipow 105
| Product Name | Article Number | POS.No. |
| OPTIPOW 105(24VDC) | V1617803-0100 | ① |
| OPTIPOW 105 (110V 60Hz, 100V 50/60Hz) | V1617803-0200 | ① |
| OPTIPOW 105 (110V 50Hz) | V1617803-0300 | ① |
| OPTIPOW 105 (120V 60Hz) | V1617803-0400 | ① |
| OPTIPOW 105 (220V 50Hz) | V1617803-0500 | ① |
| OPTIPOW 105 (UR-CERTIFIED 120V 60Hz ) | V1617803-0600 | ① |
| OPTIPOW 105 (without solenoid, revolving 90° ) | V1617803-0800 | 一 |
| Coupling Set | V3592382-0000 | 一 |
| Membrane | V4549902-0100 | ② |
| O-Ring (Fluor rubber 64.5 x 3.1) | 8003-5573 | ③ |
| O-Ring (Nitril 70SH 64.5 x 3.1) | 2136-1422 | ③ |
| O-Ring (114.5 x 3.1) | 2136-1435 | ④ |
| Pilot Cover | V3630501-0100 | ⑤ |
| Plate | V3630524-0100 | ⑥ |
| Plunger | V3630527-0100 | ⑦ |
| Round Washer (SS3576-10-200HV FE/ZN45) | 4903-2173 | 一 |
| Rubber Disc | V3630530-0100 | ⑧ |
| Rubber Disc | V3640661-0100 | ⑧ |
| Solenoid Valve(24 V DC) | V3611471-0100 | ⑨ |
| Solenoid Valve (100 V, 60 Hz) | V3611471-0201 | ⑨ |
| Solenoid Valve (110 V, 50 Hz) | V3611471-0300 | ⑨ |
| Solenoid Valve (110 V, 60 Hz) | V3611471-0200 | ⑨ |
| Solenoid Valve (120 V, 60 Hz) | V3611471-0400 | ⑨ |
| Solenoid Valve (120V, 60 Hz-UL CERTIFIED) | V3640645-0200 | ⑨ |
| Solenoid Valve (230V, 50 Hz) | V3611471-0500 | ⑨ |
