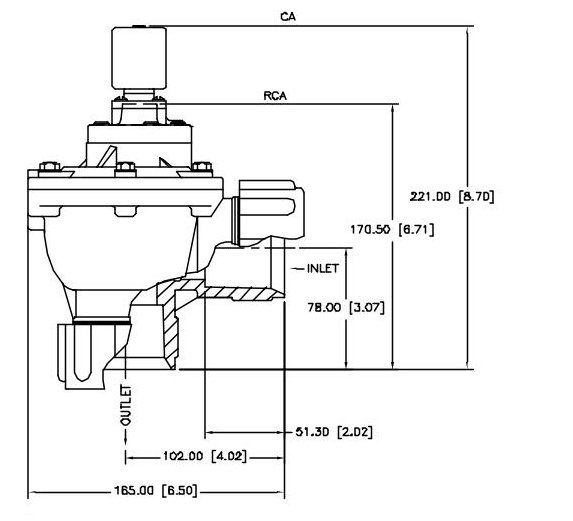

RCA45DD Dresser Nut Air Control Pulse Jet Valve

Model No.: RCA45DD

Brand: SMCC

Port Size: 1.5''

Diaphragm Material: Nbr, Fkm

Valve Structure: Dresser Nut, Right Angle

Valve Series: Dd

Pilot Size: 1/8'', 1/4''

Body Material: Aluminum Alloy

Structure: Diaphragm

Item: Insert Pipe Air Control Pulse Jet Valves

Working Pressure Range: 0.35 To 0.85 Mpa

Working Medium: Clear Air

INQUIRE NOW

RCA45DD DRESSER NUT AIR CONTROL PULSE JET VALVE

1.5 "Adjuster nut port valve, with 18" NPT remote port and Viton seal.

The pilot model operates with a remote pressure source, moving the valve core. The remote pressure source is sent to the valve to move it.

Different pulse jet valve structures:

* Threaded type

* Diverter flat mounting type

* Dresser nut type

* Straight-through type

* Flange type
