Optipow105 Membrane V4549902-0100
Product Description
Standard: Optipow Pulse Jet Valve
Operating Temperature : Low Temperature Resistant Design
Application: Diaphragm Plunger Pulse Jet Valve, Fabric Bag Colletor Valve
Advantage: 30 Years Experience Factory, Strict Quality Control System, Supper Quality, Attractive Price
Production Capacity: 1000000PCS/Month
Longer Service Life: More than Twice Service Life than that in the Same Industry
Interchange: Pulse Jet Valve, Optipow Fabric Filter Valve
Assurance: One Year Free Quality Assurance Service
Service: 7*24 Hours Expert Consultation Online
Product Details

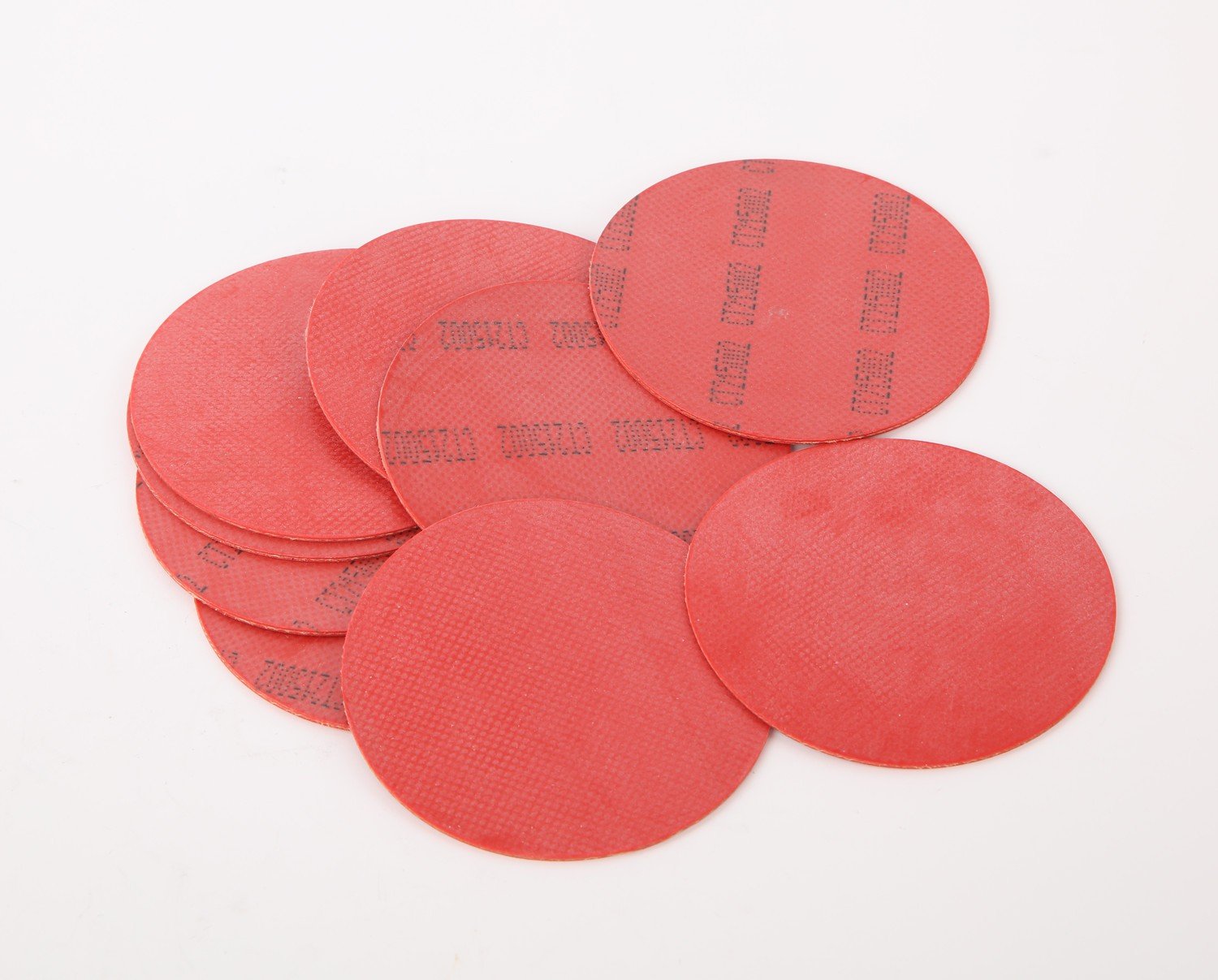

Optipow105 Membrane V4549902-0100
1.Pilot membrane, is made of special Nitril Rubber.
2.The diaphragm is universal, suitable for OPTIPOW105 and OPTIPOW135.
3.Built-in reinforced mesh.
4.Diaphragm V4549902, the compact pulse valve for the Optipulse fabric filters of different types
V4549902 / V4549902-0100 type diaphragm membrane for OPTIPOW105 & OPTIPOW135 piston pulse Valve.
Ordering Code: V4549902-0100
Material: Nitrile(NBR)
V4549902-0100 type diaphragm kits can be used for OPTIPOW105 & OPTIPOW135 3inch 4inch piston pulse valves.
OPTIPOW® 105, the compact pulse valve for the Optipulse fabric filters of different types:
is a result of many years of experiences within the fabric filter technology area,
experiences from the former used membrane type of pulse valve and extensive testing
in the SEATC laboratories.
Normal operating pressure： < 6 bar
◆ MEMBRANE PARAMETERS
| PARTS NO. | FIT | DIAMETER | THICKNESS | MAIN MATERIAL | MEDIUM | ENVIRONMENTAL TEMP | WEIGHT |
| V4549902-0100 | Optipow105/135 | 72mm | 1.15mm | Buna-N rubber | Air,Pmax 7Bar | -50 ºС to + 110 ºС | 6g/pc |
| Burkert | |||||||
| Danfoss |
◆ Plunger Pulse Solenoid Valve Optipow 105
| Product Name | Article Number | POS.No. |
| OPTIPOW 105(24VDC) | V1617803-0100 | ① |
| OPTIPOW 105 (110V 60Hz, 100V 50/60Hz) | V1617803-0200 | ① |
| OPTIPOW 105 (110V 50Hz) | V1617803-0300 | ① |
| OPTIPOW 105 (120V 60Hz) | V1617803-0400 | ① |
| OPTIPOW 105 (220V 50Hz) | V1617803-0500 | ① |
| OPTIPOW 105 (UR-CERTIFIED 120V 60Hz ) | V1617803-0600 | ① |
| OPTIPOW 105 (without solenoid, revolving 90° ) | V1617803-0800 | 一 |
| Coupling Set | V3592382-0000 | 一 |
| Membrane | V4549902-0100 | ② |
| O-Ring (Fluor rubber 64.5 x 3.1) | 8003-5573 | ③ |
| O-Ring (Nitril 70SH 64.5 x 3.1) | 2136-1422 | ③ |
| O-Ring (114.5 x 3.1) | 2136-1435 | ④ |
| Pilot Cover | V3630501-0100 | ⑤ |
| Plate | V3630524-0100 | ⑥ |
| Plunger | V3630527-0100 | ⑦ |
| Round Washer (SS3576-10-200HV FE/ZN45) | 4903-2173 | 一 |
| Rubber Disc | V3630530-0100 | ⑧ |
| Rubber Disc | V3640661-0100 | ⑧ |
| Solenoid Valve(24 V DC) | V3611471-0100 | ⑨ |
| Solenoid Valve (100 V, 60 Hz) | V3611471-0201 | ⑨ |
| Solenoid Valve (110 V, 50 Hz) | V3611471-0300 | ⑨ |
| Solenoid Valve (110 V, 60 Hz) | V3611471-0200 | ⑨ |
| Solenoid Valve (120 V, 60 Hz) | V3611471-0400 | ⑨ |
| Solenoid Valve (120V, 60 Hz-UL CERTIFIED) | V3640645-0200 | ⑨ |
| Solenoid Valve (230V, 50 Hz) | V3611471-0500 | ⑨ |
