DMF-Z-20A
Product Description
This is a core actuator for baghouse dust collector cleaning systems, a right-angle pulse solenoid valve designed specifically for industrial dust removal applications.
Product Details

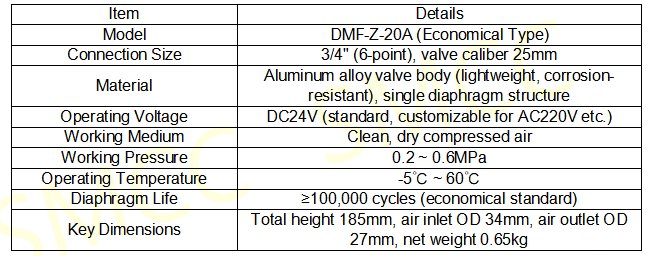

DMF-Z-20A ECONOMICAL RIGHT-ANGLE PULSE SOLENOID VALVE
Core Structure & Working Principle
2.1 Structural Features
Right-angle Design: The air inlet and outlet are at a 90° right angle, perfectly matching the installation layout of dust collector air tanks and blowpipes, ensuring smooth airflow and low resistance.
Insert-type Structure: The outlet end is plug-in type, which can be directly inserted into the air tank for easy installation and space saving.
Single Diaphragm Design: Simple structure, fast response speed, suitable for economical dust removal systems.
2.2 Working Principle
The valve consists of three main parts: solenoid coil, diaphragm assembly, and valve body. It realizes fast opening and closing through electrical signals from the pulse controller:
Normally Closed State: When the coil is de-energized, the diaphragm tightly seals the valve port under the action of spring force and air chamber pressure, and compressed air cannot pass through.
Opening & Blowing: When the coil receives a DC24V pulse signal, it generates a magnetic field to attract the spool, the rear air chamber of the valve quickly releases pressure, forming a pressure difference before and after the diaphragm, instantly opening the valve port, and high-speed compressed air blows into the dust filter bag to complete ash cleaning.
Automatic Closing: After the pulse signal disappears, the spool resets, the rear air chamber is re-pressurized, the diaphragm quickly resets under pressure, closes the valve port, and waits for the next blowing.
