ALUMINIUM PULSE VALVE SG353A051353 2.5"

ALUMINIUM PULSE VALVE SG353A051353 2.5"

1. The valves can be mounted in any position without affecting operation

2.Threaded pipe connection is:G(lS0 228/1)or compression fitting

3. For compression fitting types tightness is achieved by the compressed gasket on the blow tube

4. The use of the rubber gaskets as  sealing members will allow a slight misalignment in piping

5.Other pipe threads are available on request

6.Installation/maintenance instructions are included with each valve

7.Spare Parts Kit and replacement coils are available.

PRODUCT ATTRIBUTES

1.ORDER CODE:SCG353A051

2.GENERAL

DIFFERENTIAL PRESSURE:0,35 -8,5 BAR[1 BAR = 100KPA]AMBIENT TEMPERATURE RANGE: -20 TO +85°C

COIL INSULATION CLASS:F

CONNECTOR SPADE PLUG (CABLE Ф 6 -10 MM)

ELECTRICAL SAFETY: LEC 335

STANDARD VOLTAGES. DC (=): 24V (0THER VOLTAGES AND 60 HZ ON REQUEST)AC(~): 24V-115V-230V/50 HZ

3. MATERIALS IN CONTACT WITH FLUID

NOTE. ENSURE THAT THE COMPATIBILITY OF THE FLUIDS IN CONTACT WITH THE MATERIALS IS VERIFIED

BODY:ALUMINIUM

CORE TUBE: STAINLESS STEEL

CORE AND PLUGNUT: STAINLESS STEEL

SPRINGS: STAINLESS STEEL

SEALS & DISC: NBR (NITRILE)

DIAPHRAGMS:CR (CHLOROPRENE)

SHADING COIL: COPPER

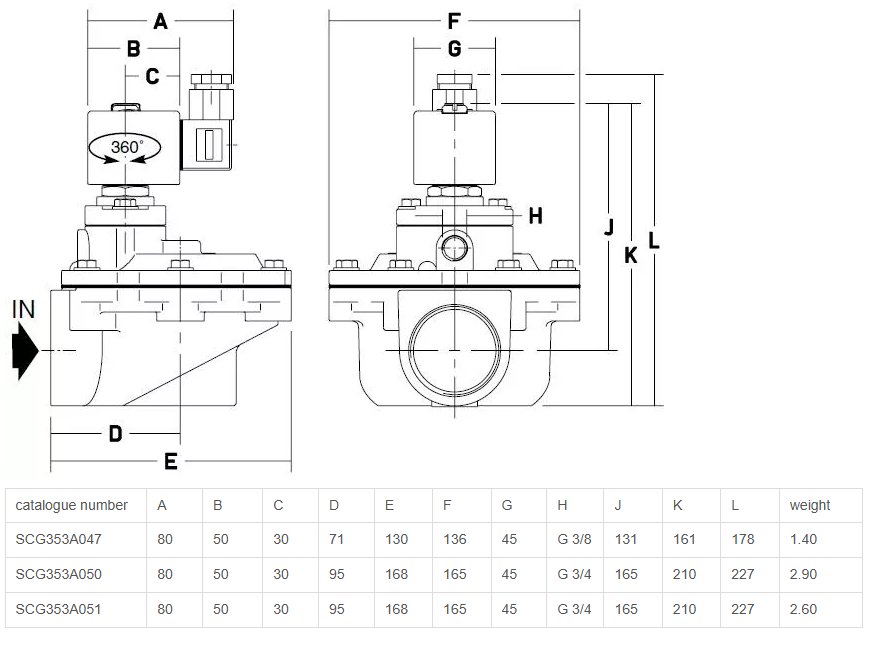

STRUCTURE AND DIAMENSION
